Din Rail Electric Terminal Block

  • Din Rail Electric Terminal Block
  • Din Rail Electric Terminal Block
  • Din Rail Electric Terminal Block
  • Din Rail Electric Terminal Block

Din Rail Electric Terminal Block

Basic Info

Model No.: JPT 1.5/S-TWIN

Product Description

JPT push-in terminal blocks are designed to extend service life under harsh conditions. Considering the space saving, the terminal block is small, adjustable, and has the characteristics of maximum flexibility and easy installation.

For More Items, we have different wiring types ,such as Push In terminal block,screw terminal block, spring terminal block etc.


  • Spring-cage connection system for vibration-sensitive applications exerts a constant force on the wire, thus achieving vibration-proof, airtight connection
  • Good conductivity Copper conductor

Model No.

JPT 1.5/S-TWIN

Color

Grey, Blue, other color can be customized

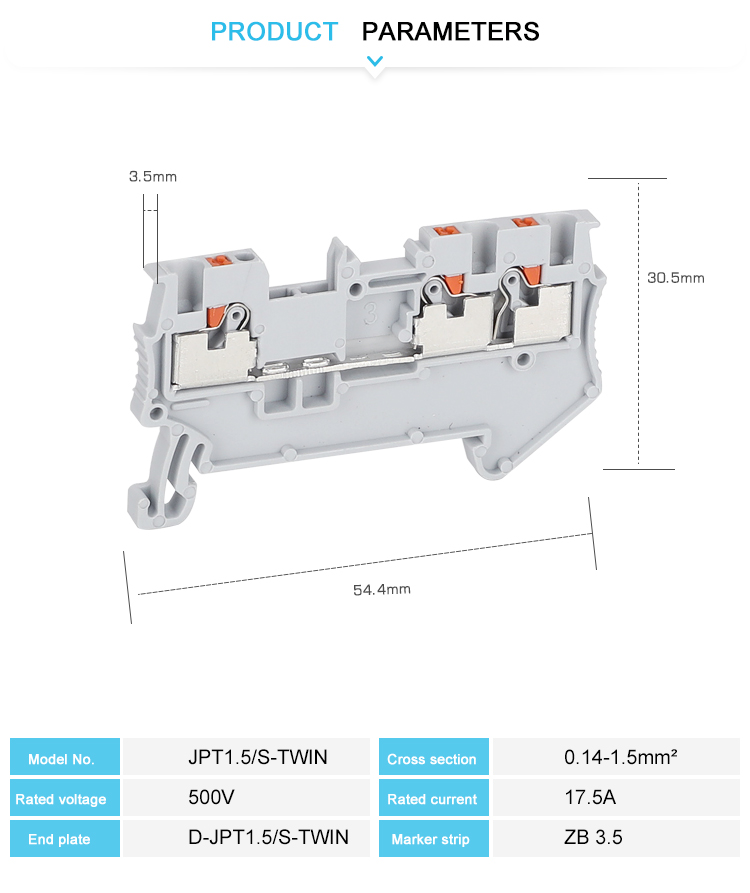

Length/Height/Wide (mm)

54/30.5/3.5

Connection method

Push-in connection

Material

Flame resistant Nylon PA66 V0

Rated Voltage/Current

500V/17.5A

Cross section, solid/soft Cable

0.14-1.5mm²/0.14-1.5mm²

Conductor Size

26-16 AWG

Mounting Type

DIN Rail NS 35

Standard

IEC 60947-7-1

LOGO

WonkeDQ, LOGO can be customized

Packing Detail

5.09g/pc, 100PCS/BOX

Certification

CE/RoHS/CQC/ISO 9001
