Home > Products > Mechanical Seal > AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump

AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump

  • AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump
  • AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump
  • AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump

AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Export wood cases
    Productivity: 500 sets / month
    Brand: Naipu
    Transportation: Ocean,Land,Air
    Place of Origin: Shijiazhuang, China
    Supply Ability: 500 sets / month
    Certificate: CE, ISO9001
    HS Code: 8413910000
    Port: Xingang,Tianjin,Qingdao

Basic Info

Model No.: AHR

Product Description

AHR Synthetic Elastomer Lined Mechanical Seal Ash Pump

Mechanicial seals are not widely used in slurry applications, but their use in special circumstances is increasing. The mechanical seal consists of a stationary and a rotating face pressed together under mechanical and hydraulic pressure, to prevent leakage.
Alpha grade silicon carbide is the most common material used for manufacture of these seal faces.
Mechanical Seal Slurry Pump applications where a centrifugal seal cannot be used, and where the addition of water cannot be tolerated, provide the most likely areas for the use of mechanical seals.

Synthetic Elastomer Slurry Pump, Mechanical Seal Slurry Pump, Replacement Rubber Liner Pump, AHR rubber liners Horizontal Slurry Pump, OEM Slurry Pump, OEM Pump Spares.

Rubber Slurry Pump


NP-AHR Horizontal Slurry Pump

AHR rubber liners Horizontal Slurry Pump are used widely used for many industry. Where most plants utilise wet separation systems.

The use of mechanical seals Synthetic Elastomer Slurry Pump in slurry applications requires extreme care and attention due to the limited reliability common in this developing area. The Replacement Rubber Liner Pump produced by Naipu pump.

Slurry Pump For Exhibition


Rubber Liners Slurry Pump performance parameters

Type
Max power (kw)
Capacity m3/hr
Head
m
Speed rpm
Max Efficiency %
NPSH
m
No. of Vanes
Diameter
mm
1.5/1 B-AHR
15
10.8-25.2
7-52
1400-3400
35
2-4
3
152
2/1.5 B-AHR
15
25.2-54
5.5-41
1000-2600
50
2.5-5
5
178
3/2 C-AHR
30
36-75.6
13-39
1300-2100
55
2-4
5
213
4/3 C-AHR
30
79.2-180
5-34.5
800-1800
59
3-5
5
245
6/4 D-AHR
60
144-324
12-45
800-1350
65
3-5
5
365
8/6 E-AHR
300
324-720
7-49
400-1000
65
5-10
5
510
10/8 F-AHR
560
540-1188
12-50
400-750
75
4-12
5
686
12/10 ST-AHR
560
720-1620
7-45
300-650
80
2.5-7.5
5
762
16/14 TU-AHR
1200
1200-3000
11-42
250-450
82
4-9
5
1067
20/18 TU-AHR
1200
1800-4000
12-44
200-350
82
5-10
5
1370

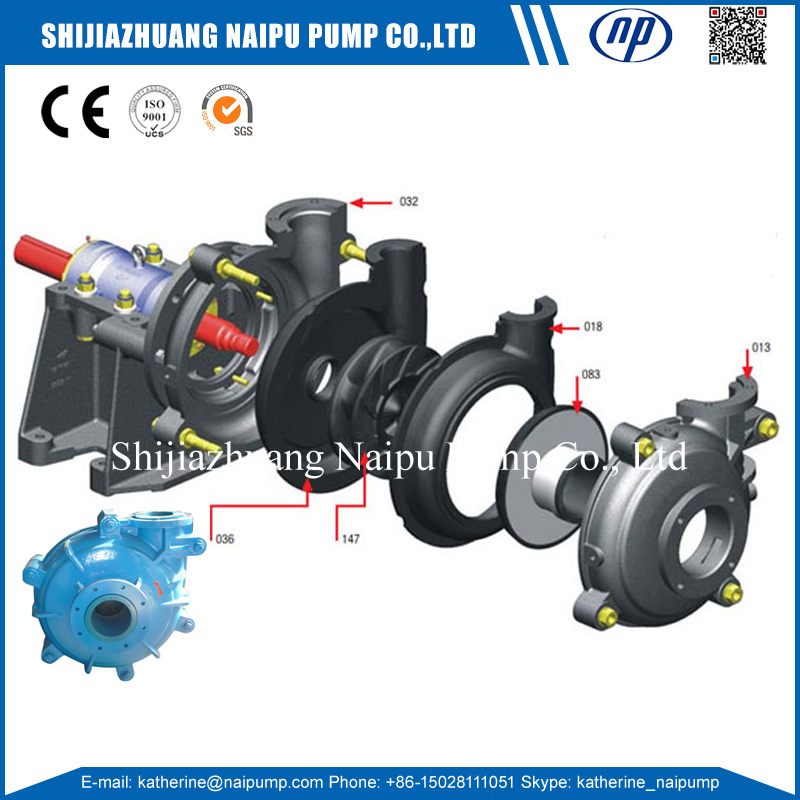

Horizontal Slurry Pump Rubber PartsAhr Slurry Pump Structure

Such as the 8/6 Slurry Pump part code no.: F6147RR55 Impeller, F6018r55 Cover Plate Liner, F6036R55 Frame Plate Liner, F6083R55 Throat bush, EAM029RMR55 Expeller...

Ah Slurry Pump Curve

Various requirement for materials in the market for slurry pump, Naipu offering wet end part material as following. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.

Any question please contact Katherine Hou freely. katherine at naipump dot com

Mechanical Seal Slurry Pump Impeller Adjusting

Shijiazhuang Naipu Pump Co., Ltd.

 Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining. The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities.. Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump. The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries. Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc. We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future. We can develop and produce a range of pumps according to different media situation to meet different duty requirment. There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request. We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
